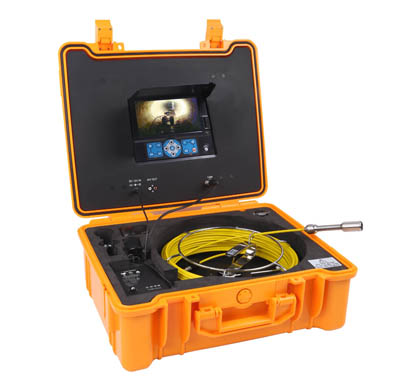

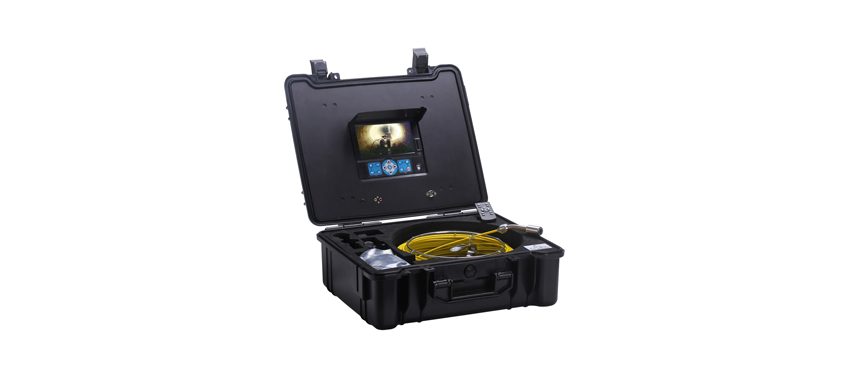

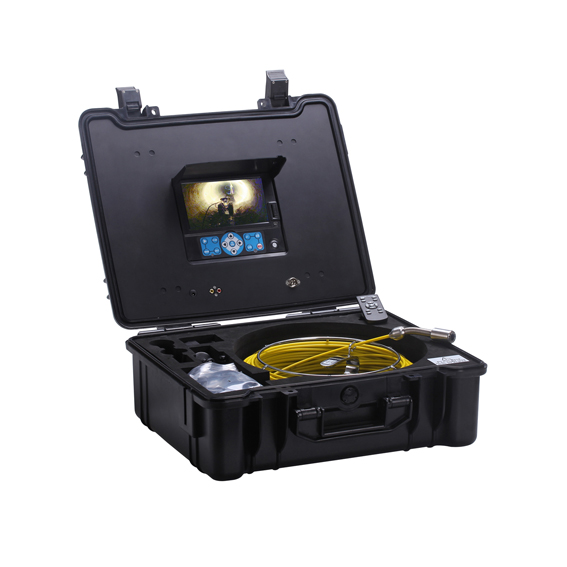

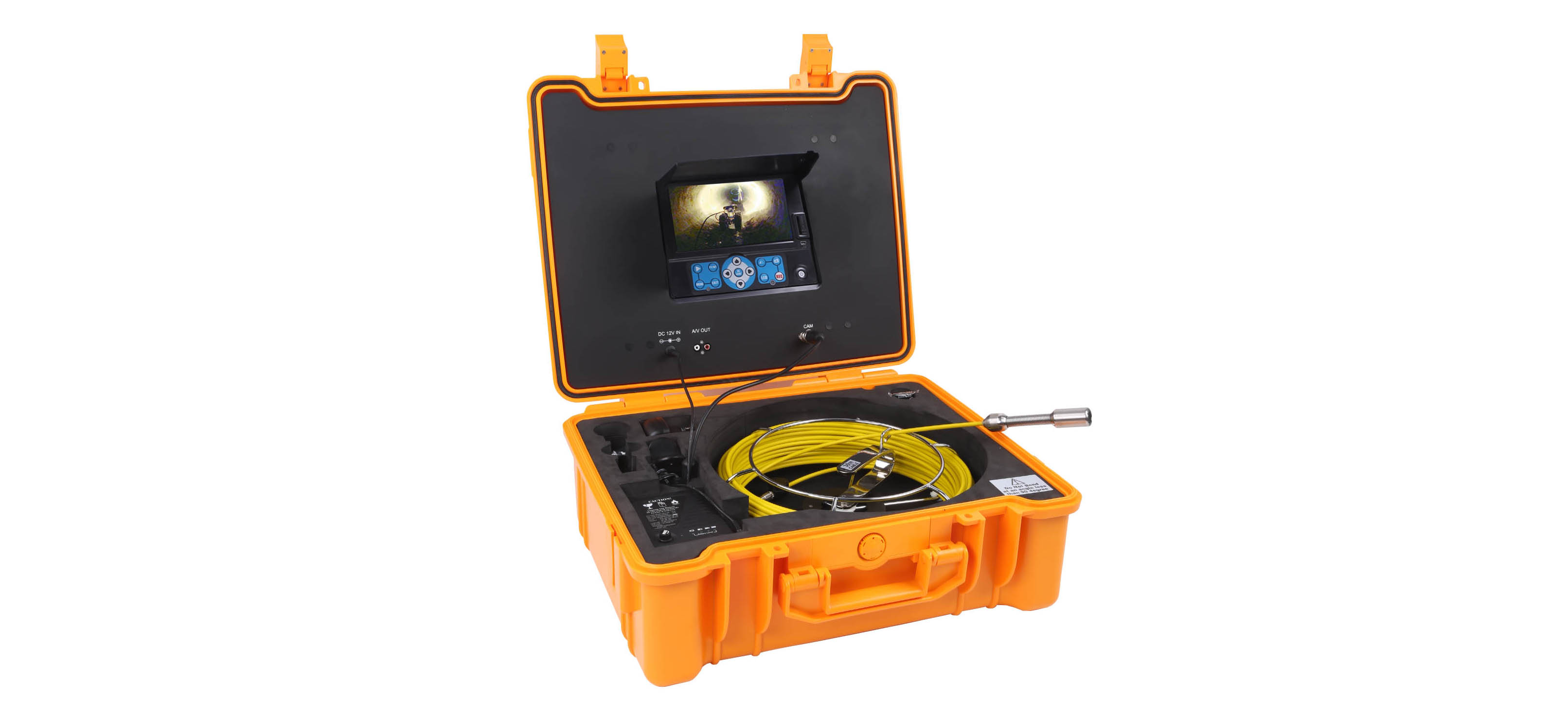

GQ-PIC001 Professional Pipe Inspection CCD Camera with 7 inch Color TFT LCD DVR
Main Features:
l Pipe Inspection Camera with 1/3 inch Sony CCD senor, 420TV lines, supports sharp and clear photo and video

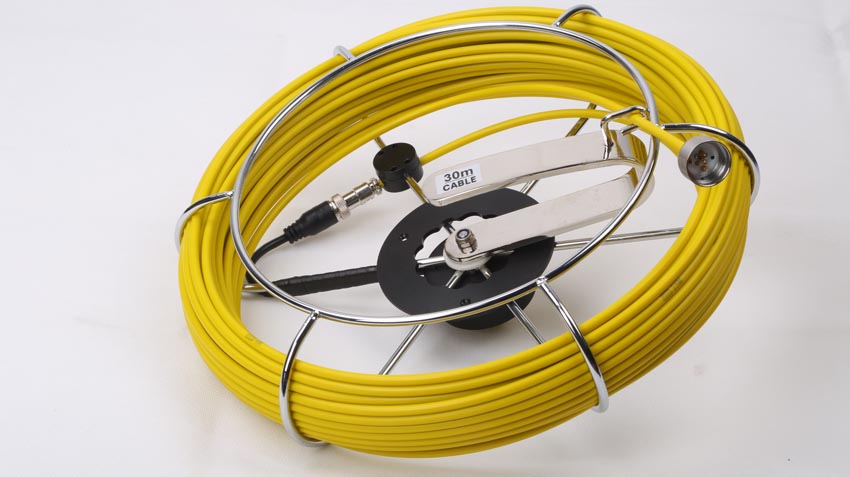

l The rotatable cable Reel mounted in tool box supports One Hand Working

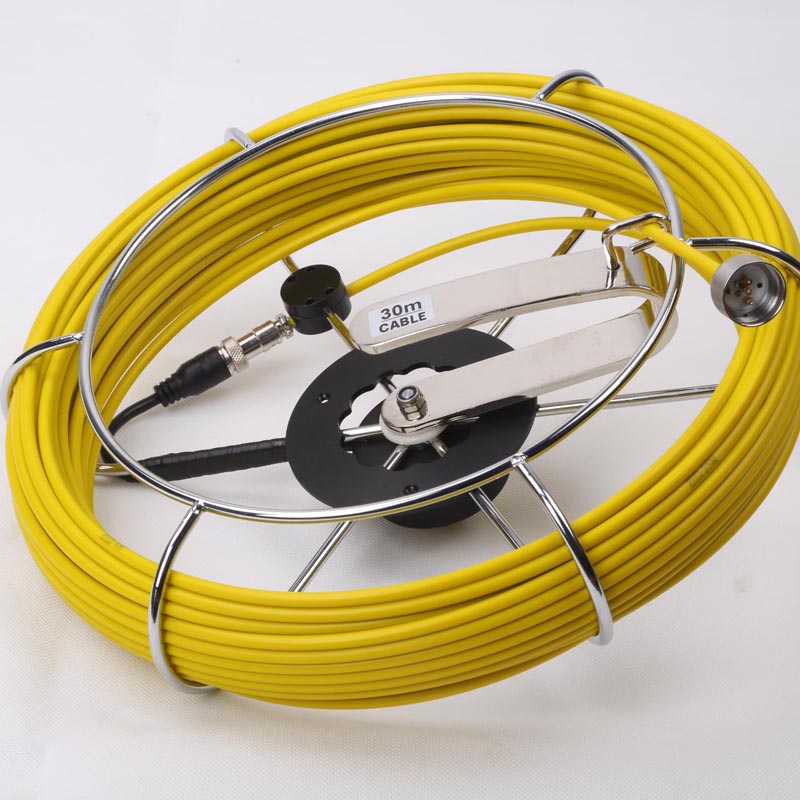

l φ5.2mm Fiberglass Push Cable, the length is optional: 20m/30m/40m
l Sappire glass lens cover not easy to be scratched, make sure the clear photo and video anywhere
l Wide View Angle 140 degree

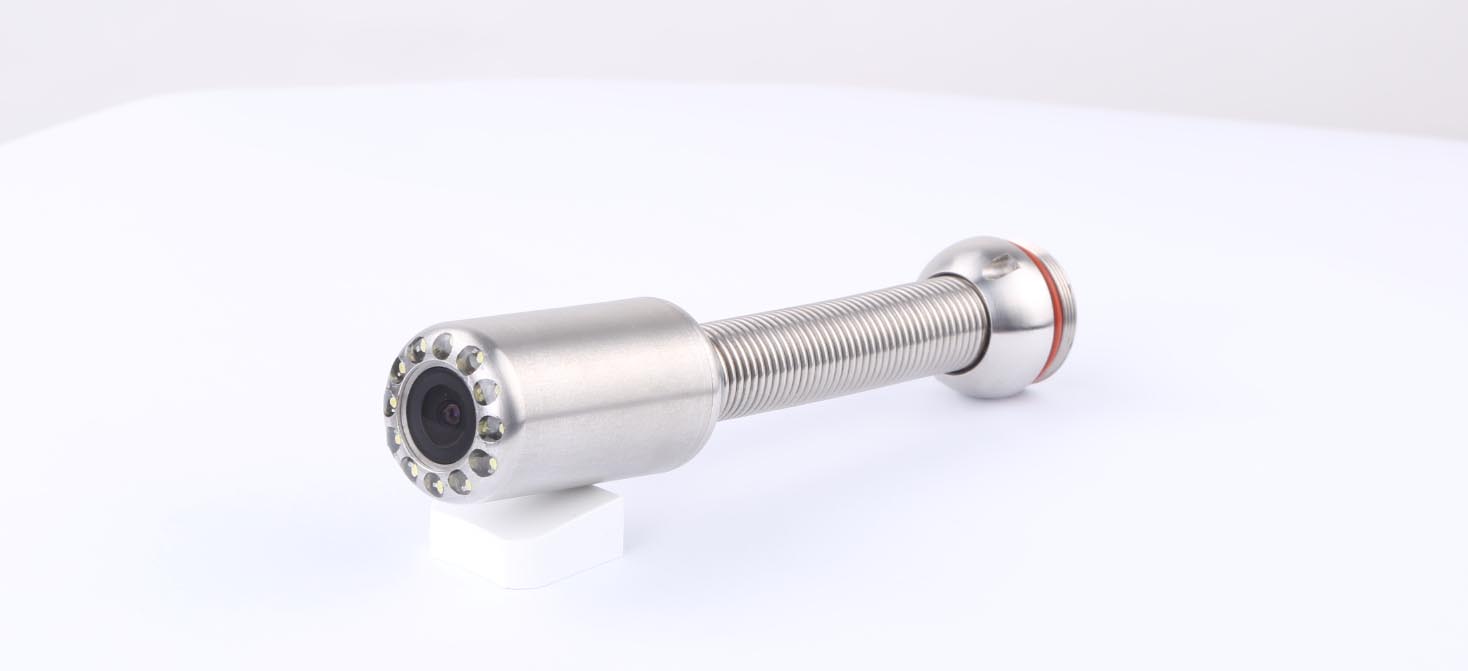

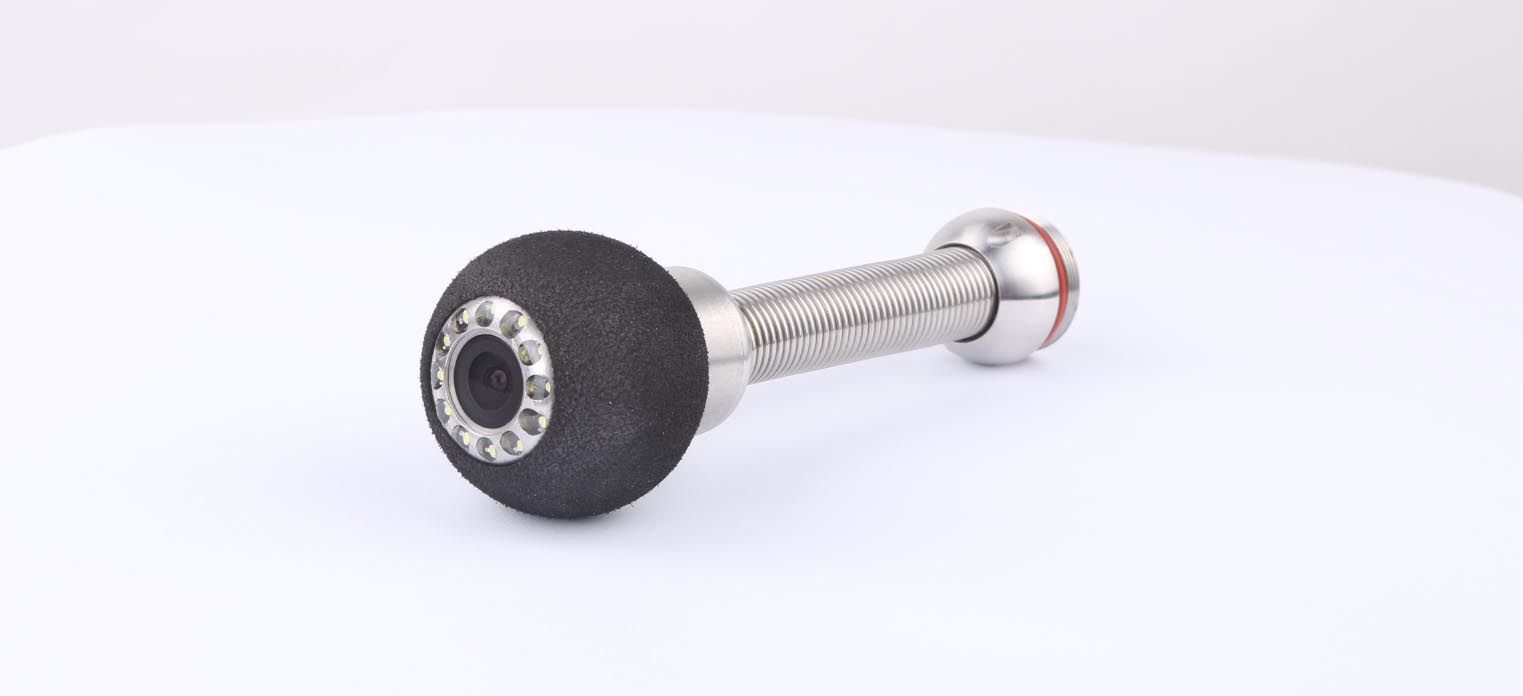

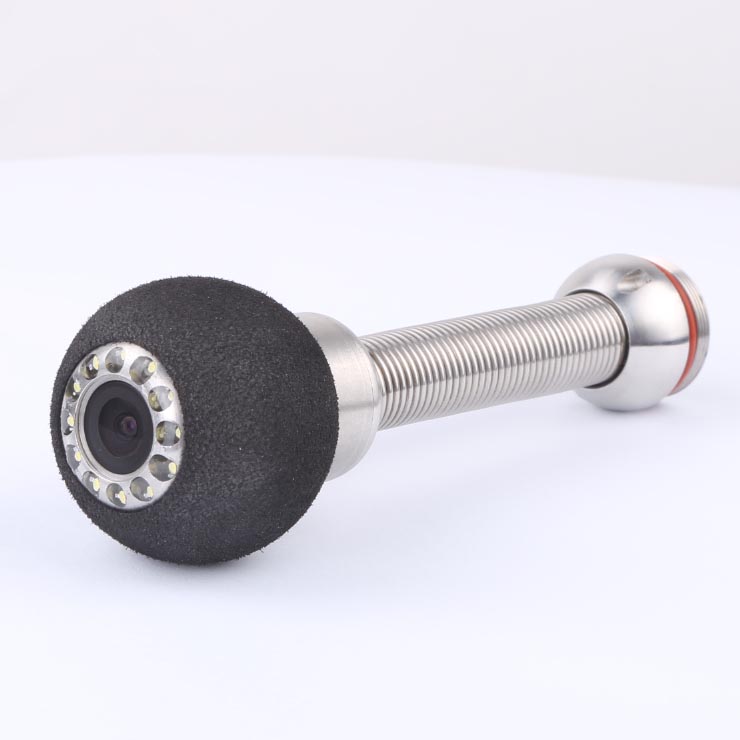

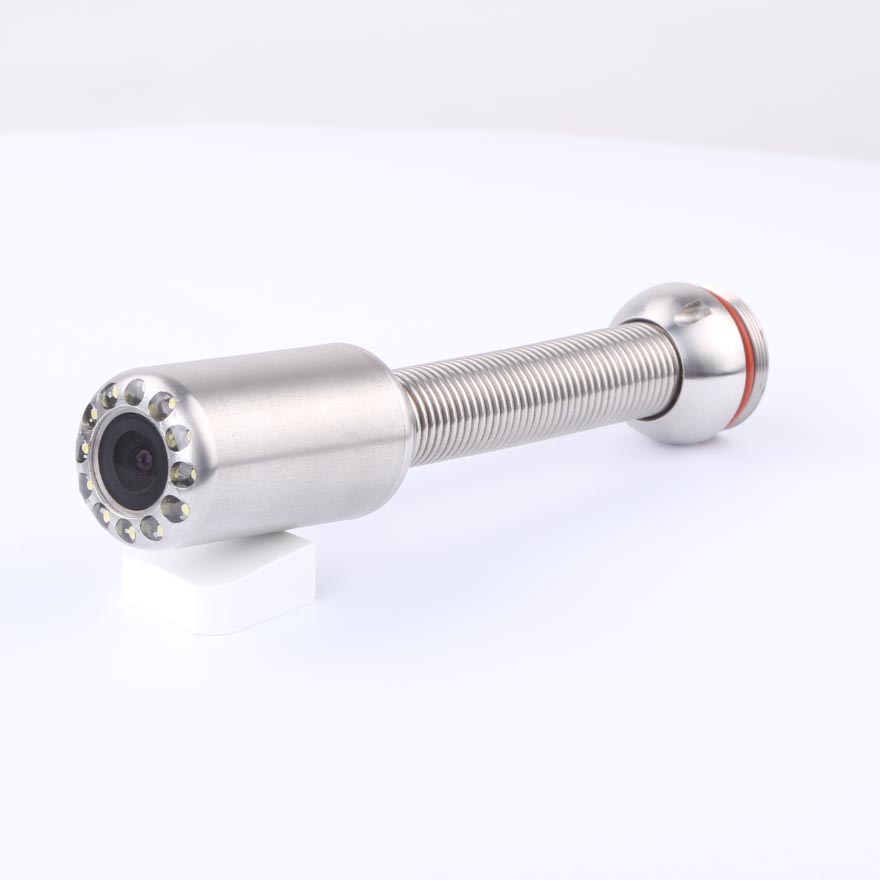

l Mini Camera at diameter 23mm easy to go through 90 degree bend pipes at diameter 45mm
l With Built-in 12 High Light White LEDs

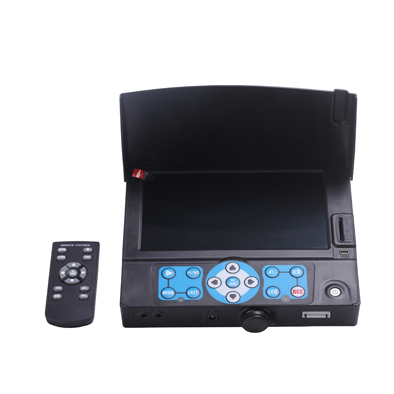

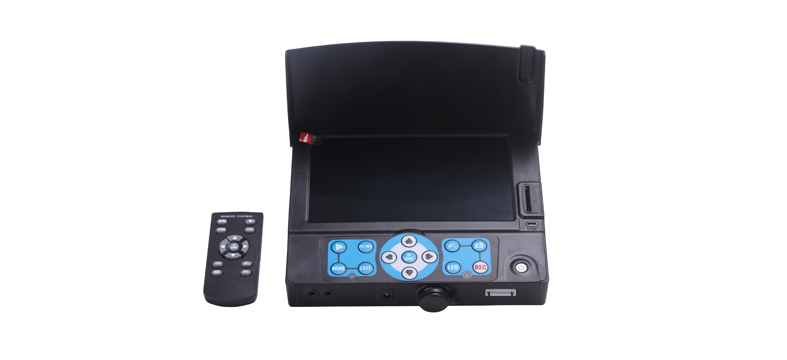

l With 7 inch TFT Color LCD DVR
l Supports Flip and Mirror function
l OSD Language: English, German, French, Italian, Spanish, Russian and Japanese, etc.
l The battery supports 9 hours continuous working and can be recharged from external battery or cigarette charger on cars
l Camera Water Proof Grade: IP68 supports working underwater 20m
| Specification |
|
|
|
| Working Temperature |
|
-10~50℃/+14~+122℉ | |
| Working Humidity |
|
30%RH~90%RH |
|
| Storage Temperature |
|
-20~60℃/+4~+140℉ | |
| Power Adapter |
|
Input: 110VAC~240V AC Output:12V DC 1500mA |
|
| Camera Sensor |
|
1/3" Sony CCD | |
| TV Line |
|
420 |
|
| Camera View Angle |
|
140 degree | |
| Lens Focus |
|
20cm | |
| Camera Dimension |
|
φ23mm×45mm | |
| Length of Camera |
|
120mm |
|
| Lens Cover |
|
Sappire Glass | |
| Camera Housing |
|
304 Stainless Steel | |
| LED |
|
Built-in 12 high light White LEDs | |
| Camera Waterproof Level |
|
IP68 Underwater 20m | |
| Camera Power Supply |
|
DC 12V | |
| Camera Power Consumption |
|
60mA/LED Off, 140mA/LED On | |
| DVR LCD |
|
16:9, 7" TFT Color LCD | |
| LCD Resolution |
|
800 x 480 |
|
| Video Resolution |
|
PAL 720×576 25FPS Max NTSC 720×488 30FPS Max |
|
| Video Fomat |
|
AVI |
|
| Video Compression |
|
H.264 | |
| Photo Resolution |
|
720×480; 720×576 | |
| Audio |
|
Support | |
| Storage |
|
up to 32GB | |
| Storage Consumption(8GB) |
|
Photo: 15000pcs |
|
|
|
Video: 4 hours |
|
|
| Interface |
|
USB 2.0 | |
| DVR Power Input |
|
6-12V DC | |
| DVR Power Consumption |
|
700mA (Max.) | |
| Battery Power Input |
|
9-12V DC | |
| Battery Capacity |
|
7.4V 6600mAh Li-on Battery | |
| Battery Power Output |
|
6 - 12V DC and 5V DC | |
| Battery Working Time |
|
7 hours for continuous recording 9 hours for playback |
|
| Battery Charge Time |
|
8 hours |
|
| Battery Life |
|
Recharge times more 700 times | |
| Cable Diameter |
|
4.2mm, 5.2mm for optional | |
| Cable Length |
|
20m, 30m, 40m for optional | |
| Packing information |
|
|
|
|
|
|
Cable Length | 20/30/40 | m (optional) |
|
|
|
Packaging | Tool Box |
|
|
|
|
Box Color | Yellow/Black | (optional) |
|
|
|
Box Dimension | 520 x 434 x 200 | mm (L x W x H) |
|
|
|
Pcs / Carton | 1 | Sets |
|
|
|
Gross Weight | 18 | kgs/Ctn |
|
|
|
Carton Dimensions | 575×265×520 | mm (L x W x H) |
|
|
|
|
|
|
|
| Other Condition |
|
|
|
|
|
|
Safety Certificate | CE/FCC |
|
|
|
|
Country of Origin | China |
|
|
|
|
|
|
|
|

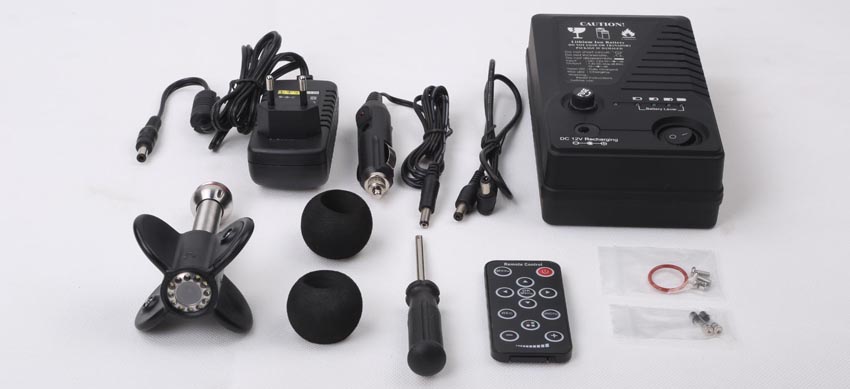

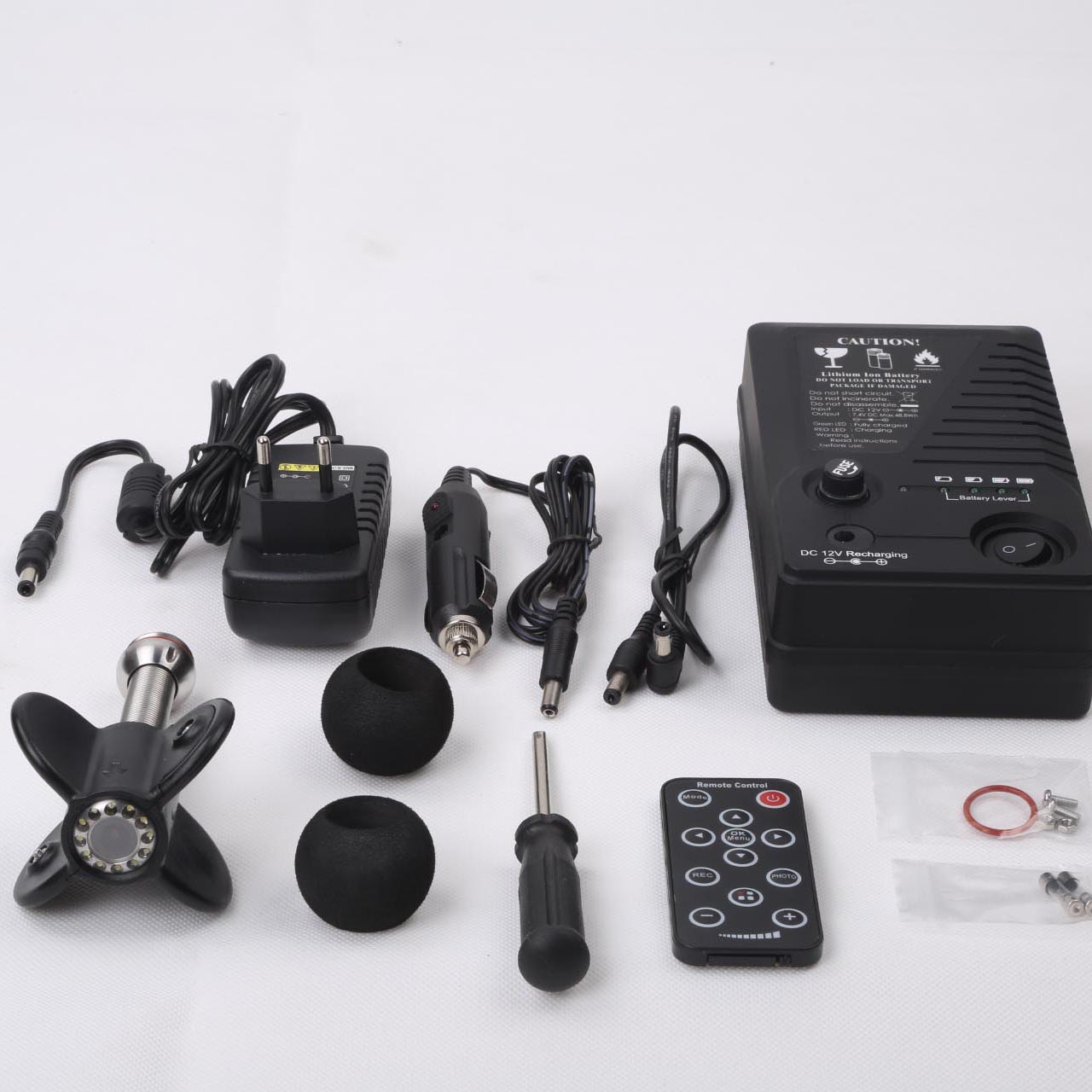

| Package Contents |
|
|
|
|
|
|

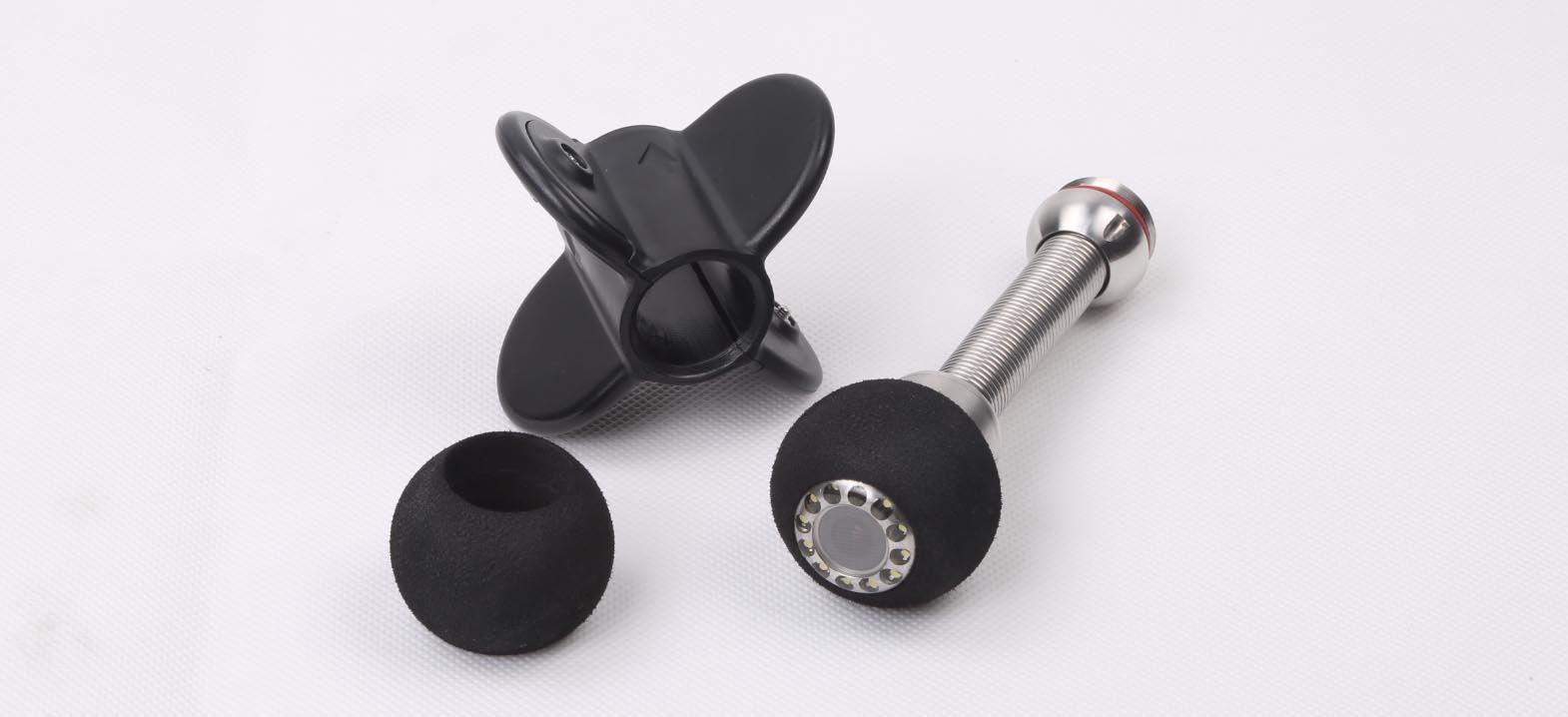

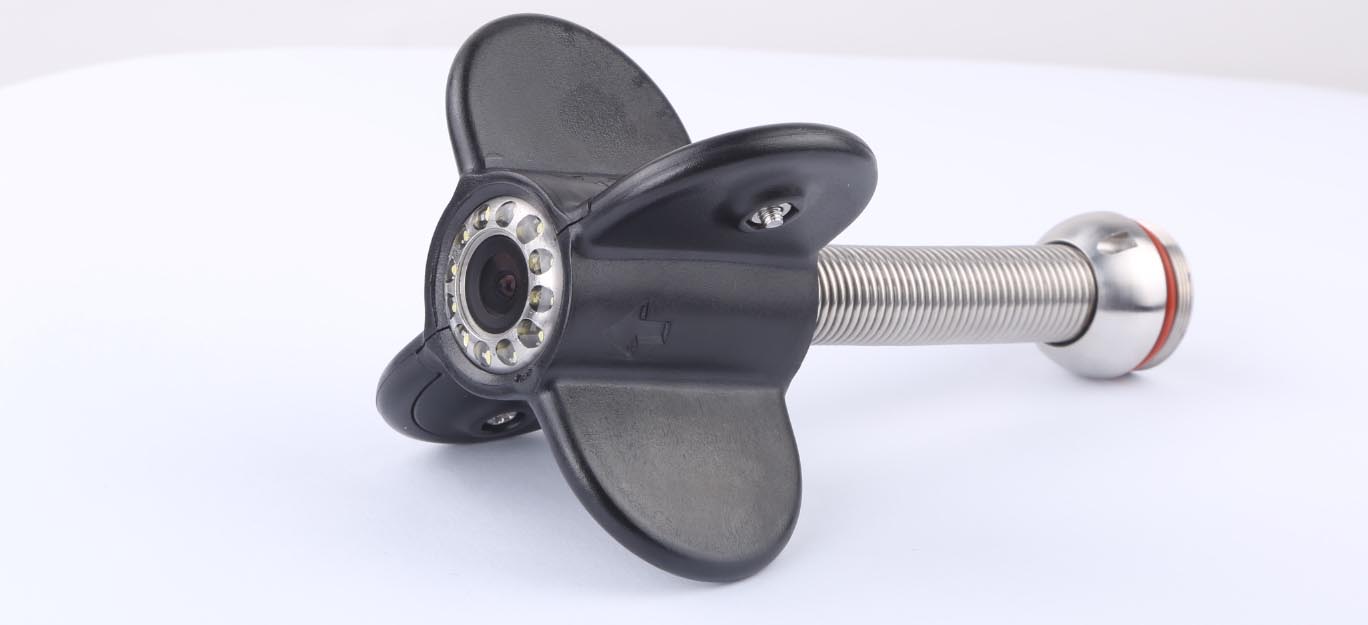

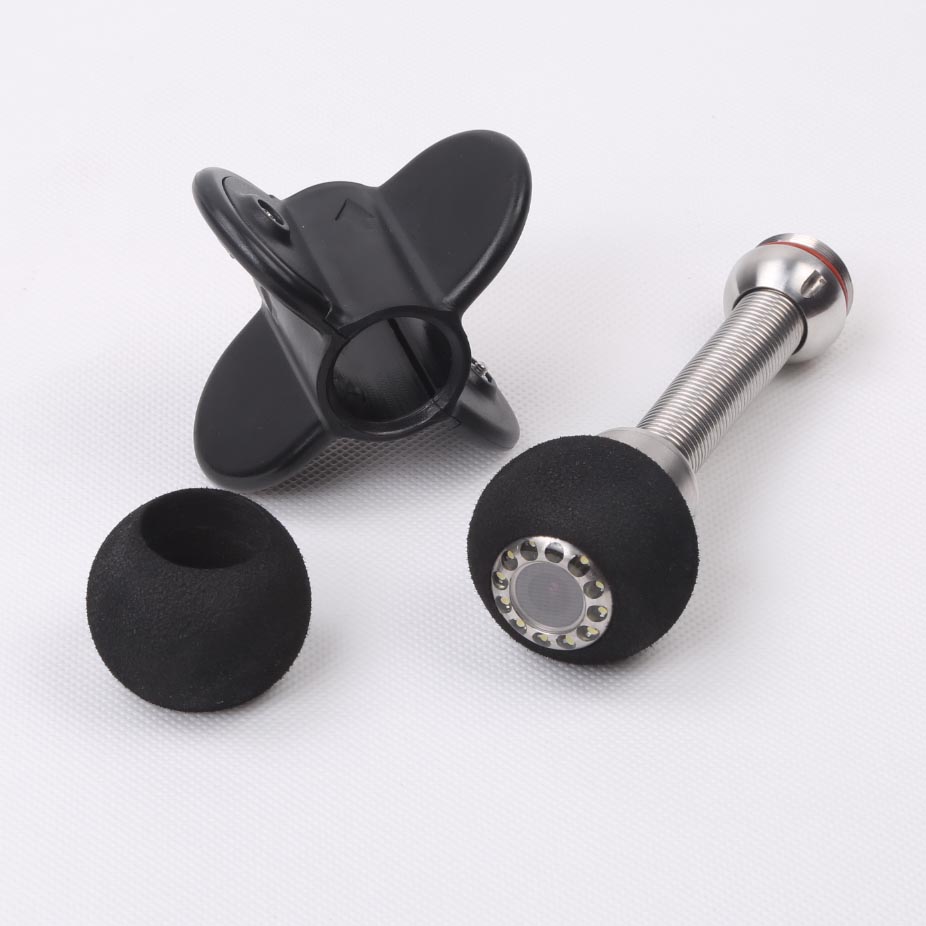

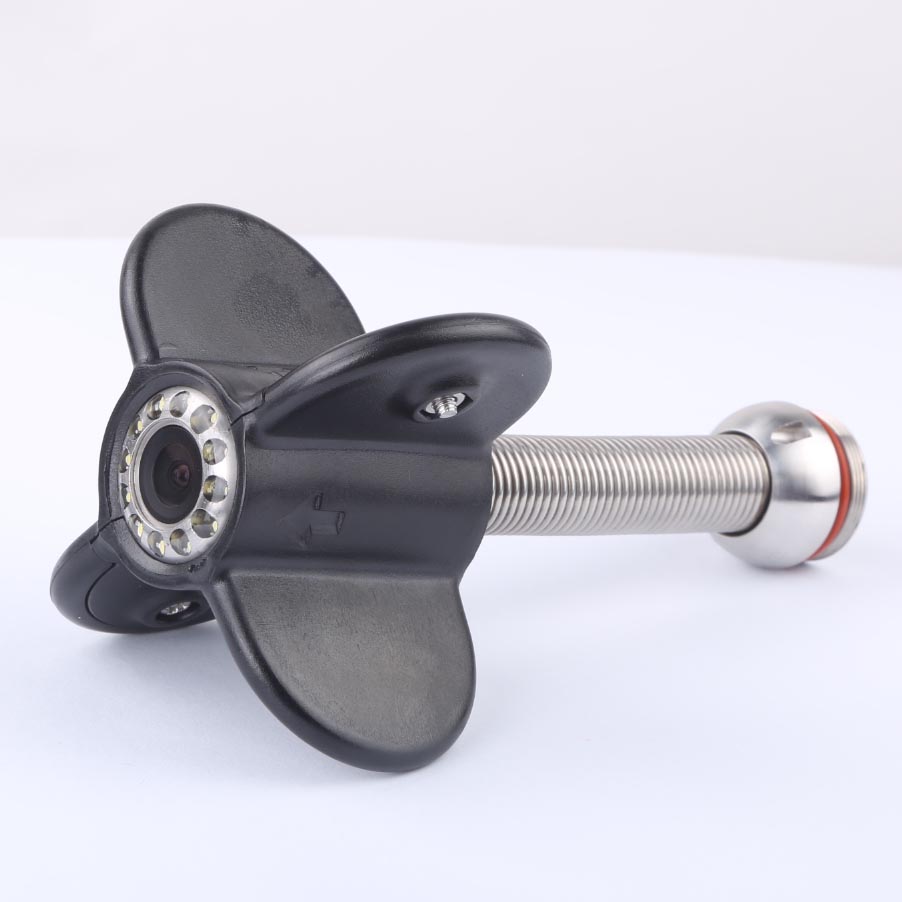

1. DVR with 7" LCD x 1 2. Remote Controller x 1 3. Camera x 1 4. Cable Wheel x 1 5. Cable x 40m (optional for 20m, 30m, 40m) 6. Battery Pack and cable 7. Fuse for Battery x 2 8. Car Cigarette Light Charger x 1 9. Plastic Skid x 1 10. Ball Guide x 1 11. Screw x 2 12. Nut x 2 13. Waterproof Ring x 1 14. Power Adapter x 1 15. ScrewDriver x 1 |
|||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
|
|
||||
