Pipe Inspection Camera

HOME>Products>Pipe Inspection Camera
  • Products
  • Parameter
  • Video
  • Data

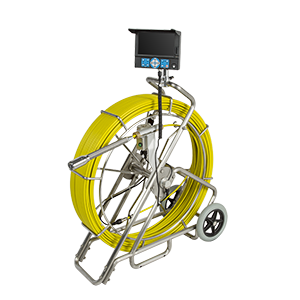

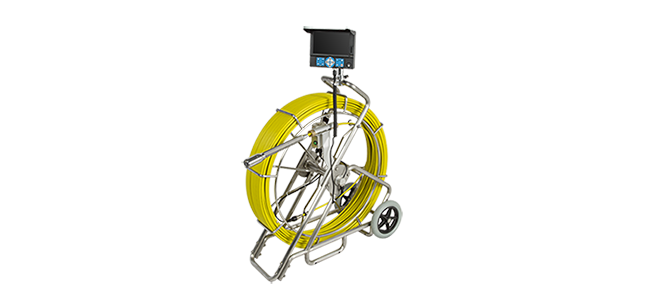

GooQee PIC002 Professional Pipe Inspection Camera with Self-Levelling, 512Hz Wireless Locator, Sonde function, Meter Counter, 1/3-inchSony CCD Sensor and 7-inch Color TFT LCD DVR


MAIN FEATURES


》Suitable for pipes at diameter 50 - 400mm. Waterproof Camera IP68 underwater 20m

》512Hz Sonde /Transmitter is optional, compatible with 512Hz Wireless Locator(not included)

》The Built-in Distance Counter lets you know accurately how far the camera going through

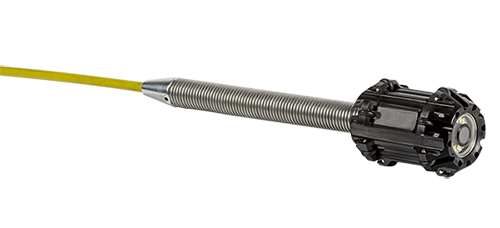

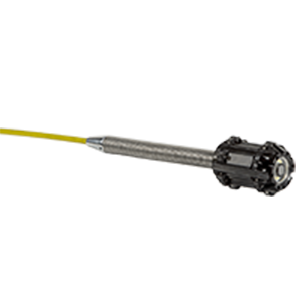

》Camera at φ38mm with Anti-Scratch Sapphire lens cover easily go through 90° bend pipes at 120mm

》OSD Language: English, German, French, Italian, Spanish, Russian, Japanese, Portuguese

》Strong Fiberglass Push Cable at φ9.0mm , the length is optional: 60m/80m/100m/120m

》Self-Leveling function makes the inspection job more comfortable

》The Mini Text writer supports adding remarks on recorded or recording videos and photos

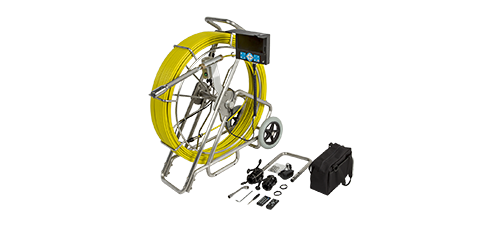

ACCESSORIES


1. Camera x 1
2. 7-inch DVR x 1
3. Screwdriver x 1
4. Bolts and nuts x 4
5. Inner hexagon spanner

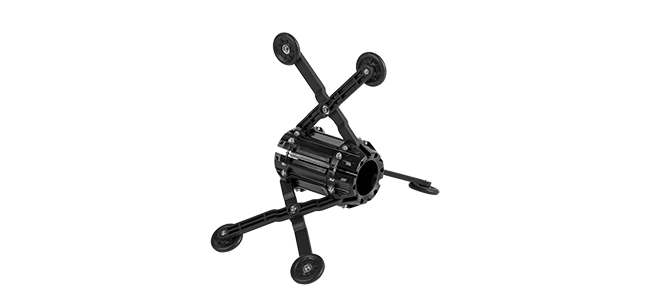

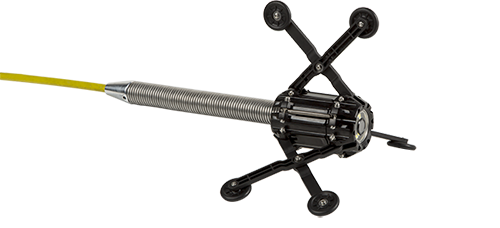

6. 72 Roller Skid(for pipe diameter 3"-4" x 1
7. Car cigarette light charger x 1

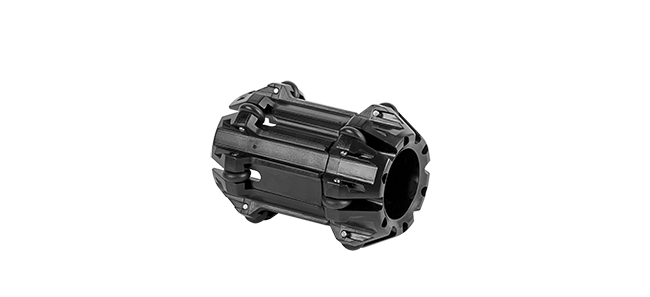

8. 120 universal skid(for pipe diameter 5"-12"
9. Text Writer x 1
10. Power Adapter x 1
11. Hexagon spanner x 1
12. Remote Control x 1
13. SD Card 4GB x 1
14. Wheel x 1
15. Frame x 1
16. Coil and push rod x 1
17. Distance Counter device x 1
18. Guide spring x 1
19. Extention Handle x 1



SPECIFICATION


Working Humidity
30%RH~90%RH
Storage Temperature
-20~60℃/+4~+140℉
Power Adapter
Input: 110VAC~240V AC
Output:12V DC 1500mA
Camera Sensor
1/3" Sony CCD
TV Line
420
Camera View Angle
120 degree
Lens Focus
20cm
Camera Dimension
φ38mm×81mm(main body)
Length of Camera
318mm
Lens Cover
Sappire Glass
Camera Housing
304 Stainless Steel
LED
Built-in 12 high light White LEDs
Camera Waterproof Level
IP68 Underwater 20m
Camera Power Supply
DC 12V
Camera Power Consumption
60mA/LED Off, 140mA/LED On
DVR LCD
16:9, 7" TFT Color LCD
LCD Resolution
800 x 480 RGB
Video Resolution
PAL 720×576 25fps
NTSC 720×488 30fps
Video Fomat
AVI
Video Compression
H.264
Photo Resolution
720×480; 720×576
Audio
Support
Storage
up to 32GB SD Card
Storage Consumption(8GB)
Photo: 15000pcs

Video: 4 hours
Interface
USB 2.0
DVR Power Input
6-12V DC
DVR Power Consumption
700mA (Max.)
Battery Power Input
9-12V DC
Battery Capacity
7.4V 5200mAh Li-on Battery
Battery Power Output
6 - 12V DC and 5V DC
Battery Working Time
3 hours for continuous recording
5 hours for playback
Battery Charge Time
4 hours
Battery Life
Recharge times more 700 times
Cable Diameter
9.0mm
Cable Length
60m, 80m, 100m, 120m for optional

Packing information



Cable Length 60/80/100/120 m (optional)

Tools Pack 517 x 434 x 200 mm (L x W x H)

Tools Box Color Green


Packaging Carton Box


Pcs / Carton 1 Sets

Gross Weight 55 kgs/Ctn

Carton Dimensions 785 x 340 x 895 mm (L x W x H)





Other Condition



Safety Certificate CE/FCC


Country of Origin China
